3073861

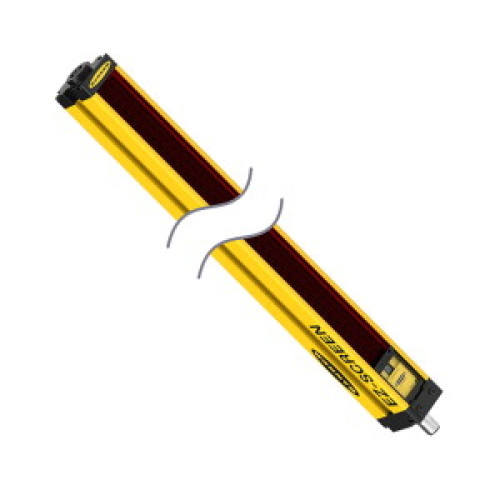

EZ-SCREEN Emitter, Resolution: 14, Range: 6 m (20 ft), Defined Area: 900 (35.4 in), Housing Length: 971 (38.2 in), Connection: 8-p

Manufacturer's No: SLSE14-900P8     Manufacturer: Turck Banner
EZ-SCREEN Emitter, Resolution: 14, Range: 6 m (20 ft), Defined Area: 900 (35.4 in), Housing Length: 971 (38.2 in), Connection: 8-pin M12 Pigtail Connector, No test input

Availability On Request

£1,616.92
  • Safety Light Curtain Emitter
  • Operating Voltage: 20-28 VDC
  • Max. Range: 6000 mm
  • Connector: M12 x 1 male, 8-pin
  • Protection Class: IP65
  • Adjustments via DIP switch
  • Resolution: 14 mm
  • Scan Field: 900 mm
  • Includes two EZA-MBK-11 mounting brackets
  • Devices with a length of 900 mm or more also include one EZA-MBK-12


Product

Manufacturer Material ID -
SLSE14-900P8
Net Weight -
2.45kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
971 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Reaction time -
19 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
900 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Wavelength of the sensor -
950 Nanometre
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£1,616.92
Sign in or Register for customer prices.

Additional Information
