3072370

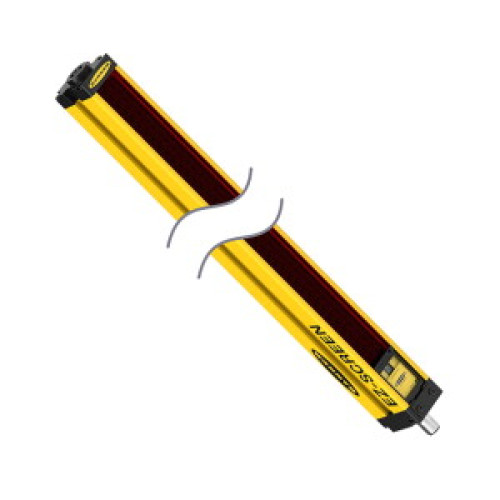

EZ-SCREEN Emitter, Resolution: 30, Range: 18 m (60 ft), Defined Area: 600 (23.6 in), Housing Length: 671 (26.4 in), Connection: 8-

Manufacturer's No: SLSE30-600Q8     Manufacturer: Turck Banner
EZ-SCREEN Emitter, Resolution: 30, Range: 18 m (60 ft), Defined Area: 600 (23.6 in), Housing Length: 671 (26.4 in), Connection: 8-pin M12 Connector, No test input

Availability On Request

£913.71
  • Light screen for machine safety applications
  • Emitter with operating voltage: 20-28 VDC
  • Maximum range: 18000 mm
  • M12 x 1 male connector, 8-pin
  • Protection class: IP65
  • Adjustments via DIP switch
  • Resolution: 30 mm
  • Scan field: 600 mm
  • Includes two EZA-MBK-11 mounting brackets; devices 900 mm or longer also include one EZA-MBK-12
  • Personnel safety category 4

Read more

  • PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLSE30-600Q8
Net Weight -
2.93kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
671 Millimetre
Length of sensor -
45 Millimetre
Reaction time -
15 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
600 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Wavelength of the sensor -
950 Nanometre
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£913.71
