72382 {B}

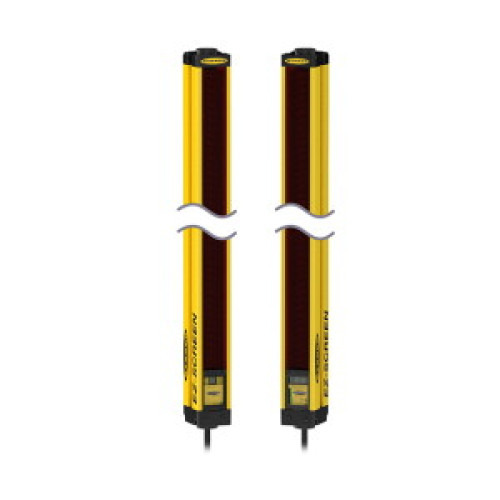

EZ-SCREEN Pair, Resolution: 14, Range: 6 m (20 ft), Defined Area: 600 (23.6 in), Housing Length: 671 (26.4 in), Connection: 8-pin

Manufacturer's No: SLSP14-600Q88     Manufacturer: Turck Banner
EZ-SCREEN Pair, Resolution: 14, Range: 6 m (20 ft), Defined Area: 600 (23.6 in), Housing Length: 671 (26.4 in), Connection: 8-pin M12 Connectors, Emitter: No test input

Availability Available to order

£2,856.20
  • Light screen for machine safety applications
  • Emitter/Receiver pair with max. range of 6000 mm
  • Operating voltage: 20-28 VDC
  • Emitter: M12 x 1 male connector, 8-pin
  • Receiver: M12 x 1 male connector, 8-pin
  • Blanking function and protection class IP65
  • Adjustments via DIP switch
  • Resolution: 14 mm, Scan field: 600 mm
  • Operating voltage: 24 VDC ± 15%
  • Includes two EZA-MBK-11 mounting brackets; devices 900 mm+ also include one EZA-MBK-12

Read more

  • Personnel safety category 4, PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2, SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLSP14-600Q88
Net Weight -
5.26kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -

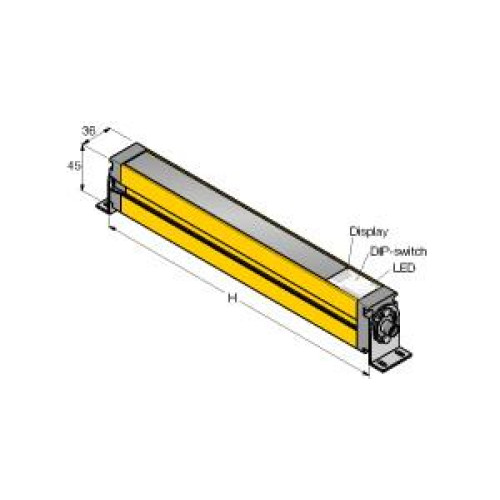

Height of sensor -
671 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
23 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
600 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
950 Nanometre
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability Available to order

£2,856.20
