71227 {B}

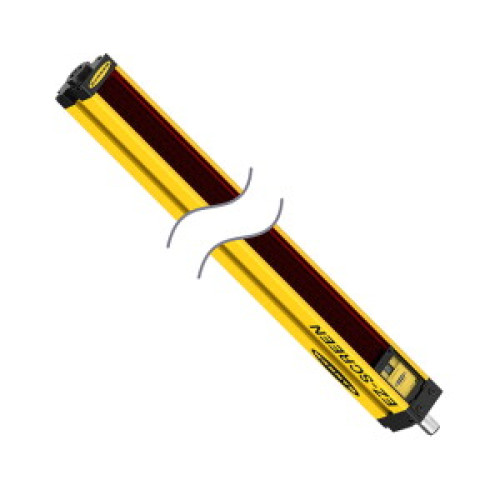

EZ-SCREEN Receiver, Resolution: 14, Range: 6 m (20 ft), Defined Area: 1200 (47.2 in), Housing Length: 1270 (50.0 in), Connection:

Manufacturer's No: SLSR14-1200Q8     Manufacturer: Turck Banner
EZ-SCREEN Receiver, Resolution: 14, Range: 6 m (20 ft), Defined Area: 1200 (47.2 in), Housing Length: 1270 (50.0 in), Connection: 8-pin M12 Connector

Availability Available to order

£2,725.64
  • Operating voltage: 20-28 VDC
  • Max. range: 6000 mm
  • Connector: M12 x 1 male, 8-pin
  • Blanking function
  • Protection class: IP65
  • Adjustments via DIP switch
  • Resolution: 14 mm
  • Scan field: 1200 mm
  • Mounting brackets included: two EZA-MBK-11 for all devices; one EZA-MBK-12 for devices with a length of 900 mm or more
  • Personnel safety category: 4

Read more

  • Safety standards: PL e acc. to EN ISO 13849-1:2008, Type 4 acc. to IEC 61496-1,2, SIL 3 to IEC 61508


Product

Manufacturer Material ID -
SLSR14-1200Q8
Net Weight -
4.69kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1270 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
40 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
1200 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability Available to order

£2,725.64
