EZ-SCREEN Receiver, Resolution: 14, Range: 6 m (20 ft), Defined Area: 300 (11.8 in), Housing Length: 372 (14.6 in), Connection: 8-

Manufacturer's No: SLSR14-300Q8     Manufacturer: Turck Banner

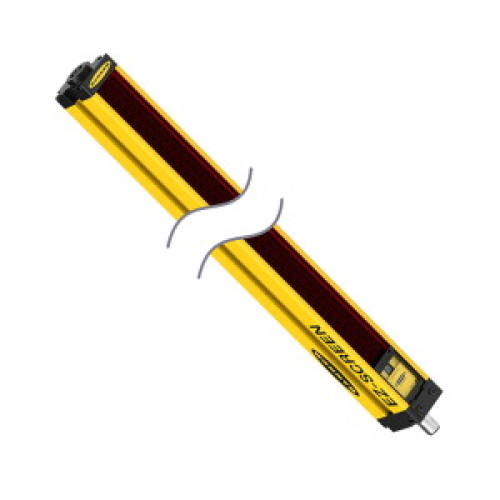

EZ-SCREEN Receiver, Resolution: 14, Range: 6 m (20 ft), Defined Area: 300 (11.8 in), Housing Length: 372 (14.6 in), Connection: 8-pin M12 Connector

Availability On Request

£1,060.70
  • Receiver with operating voltage: 20-28 VDC
  • Maximum range: 6000 mm
  • M12 x 1 male connector with 8-pin configuration
  • Blanking function included
  • Protection class: IP65
  • Adjustments made via DIP switch
  • Resolution: 14 mm
  • Scan field: 300 mm
  • Includes two EZA-MBK-11 mounting brackets; devices 900 mm or longer also include one EZA-MBK-12
  • Personnel safety category: 4

Read more

  • PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLSR14-300Q8
Net Weight -
2.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
372 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
15 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
300 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner
