3071225

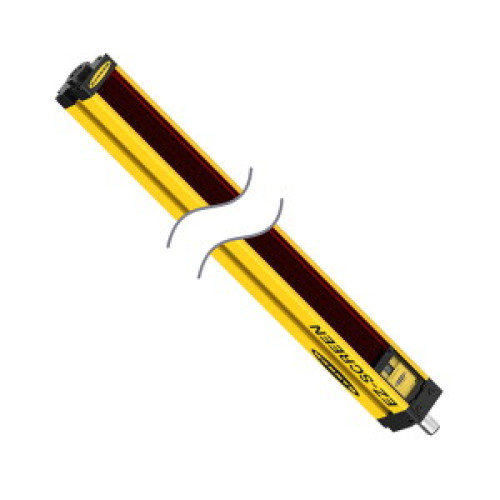

EZ-SCREEN Receiver, Resolution: 14, Range: 6 m (20 ft), Defined Area: 900 (35.4 in), Housing Length: 971 (38.2 in), Connection: 8-

Manufacturer's No: SLSR14-900Q8     Manufacturer: Turck Banner
EZ-SCREEN Receiver, Resolution: 14, Range: 6 m (20 ft), Defined Area: 900 (35.4 in), Housing Length: 971 (38.2 in), Connection: 8-pin M12 Connector

Availability On Request

£2,127.76
  • Receiver with operating voltage: 20-28 VDC
  • Maximum range: 6000 mm
  • M12 x 1 male connector, 8-pin
  • Blanking function and protection class IP65
  • Adjustments via DIP switch
  • Resolution: 14 mm with a scan field of 900 mm
  • Includes two EZA-MBK-11 mounting brackets; devices 900 mm or longer also include one EZA-MBK-12
  • Personnel safety category 4, PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1,2 and SIL 3 to IEC 61508


Product

Manufacturer Material ID -
SLSR14-900Q8
Net Weight -
4.00kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
971 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
32 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
900 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£2,127.76
