3025964

MINI-BEAM: Retro, Range: 5 m, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 2 m (6.5 ft) cable

Manufacturer's No: SM2A312LV     Manufacturer: Turck Banner
MINI-BEAM: Retro, Range: 5 m, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 2 m (6.5 ft) cable

Availability On Request

£179.66
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Operating Voltage: 24-240 VAC
  • Max. Range: 5000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjustable via Potentiometer
  • Alignment Indicator
  • Switching Output: Bipolar
  • Light/Dark Operation


Product

Manufacturer Material ID -
SM2A312LV
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

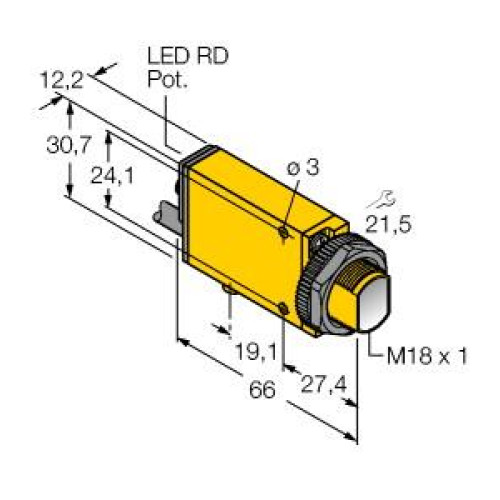

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
66 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
4 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switching output -
Relay contact
Wavelength of the sensor -
650 Nanometre
Width sensor -
12.2 Millimetre
