SM30 Series: Receiver - Frequency A PBT Polyester, Range: 150 m, Input: 10-30 V dc, Output: Bi-Modal: 1 NPN, 1 PNP - LO & DO,

Manufacturer's No: SM30PRLQD     Manufacturer: Turck Banner

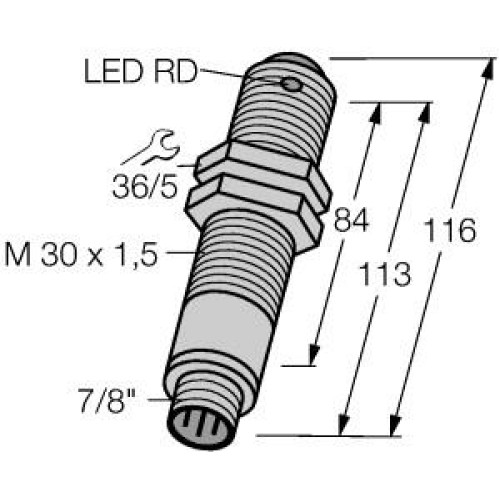

SM30 Series: Receiver - Frequency A PBT Polyester, Range: 150 m, Input: 10-30 V dc, Output: Bi-Modal: 1 NPN, 1 PNP - LO & DO, 4-pin Mini Integral QD

Availability On Request

POA
  • Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 150,000 mm
  • 7/8" Connector, 3-pin
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Modulation Frequency: A
  • Requires transmitters with the same frequency
  • Bi-modal switching output (NPN or PNP, depending on connection)


Product

Manufacturer Material ID -
SM30PRLQD
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
116 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
150000 Millimetre
Rated switching distance -
150000 Millimetre
Reaction time -
10 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector 7/8 inch
Type of switch function -
Programmable/configurable
Type of switching output -
PNP/NPN
