3027411

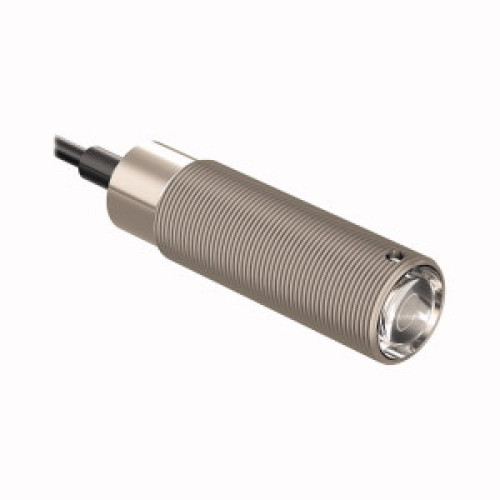

SM30 Series: Receiver - Frequency A Stainless Stl, Range: 150 m, Input: 10-30 V dc, Output: Bi-Modal: 1 NPN, 1 PNP - LO & DO,

Manufacturer's No: SM30SRL W/30     Manufacturer: Turck Banner
SM30 Series: Receiver - Frequency A Stainless Stl, Range: 150 m, Input: 10-30 V dc, Output: Bi-Modal: 1 NPN, 1 PNP - LO & DO, 9 m (30 ft) Cable

Availability On Request

£377.46
  • Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 150,000 mm
  • Cable Length: 9 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Modulation Frequency: A
  • Bi-Modal Switching Output: NPN or PNP (depending on connection)


Product

Manufacturer Material ID -
SM30SRL W/30
Net Weight -
0.84kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Housing material -
Metal

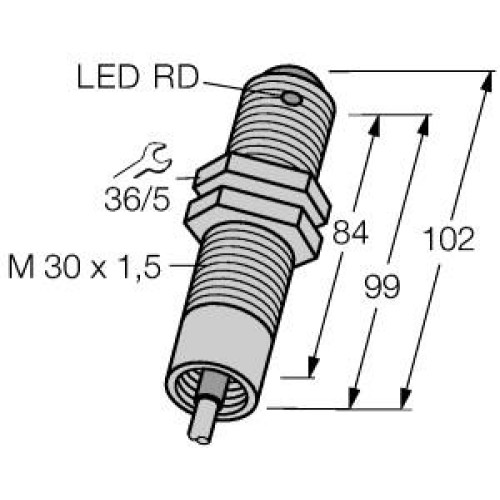

Length of sensor -
102 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
150000 Millimetre
Rated switching distance -
150000 Millimetre
Reaction time -
10 Millisecond
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of switch function -
Programmable/configurable
Type of switching output -
PNP/NPN
Turck Banner

Availability On Request

£377.46
