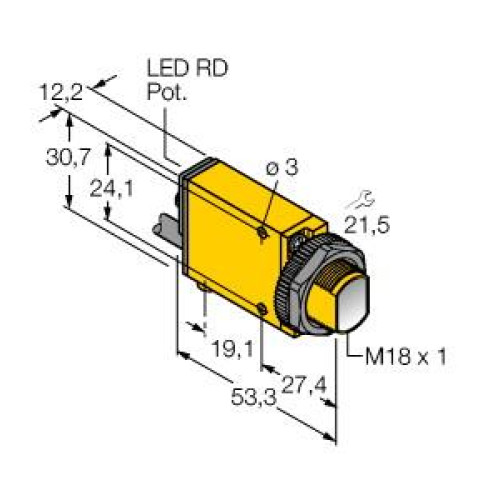

25619 {B}

MINI-BEAM: Diffuse, Range: 380, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) cable

Manufacturer's No: SM312D     Manufacturer: Turck Banner
MINI-BEAM: Diffuse, Range: 380, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) cable

Availability Available to order

POA
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 380 mm
  • Cable length: 2 m, PVC
  • Protection class: IP67
  • Sensitivity adjustable via potentiometer
  • Alignment indicator
  • Switching output: bipolar
  • Light/dark operation


Product

Manufacturer Material ID -
SM312D
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
380 Millimetre
Reaction time -
1 Millisecond
Setting procedure -
Other
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.3 Millimetre
