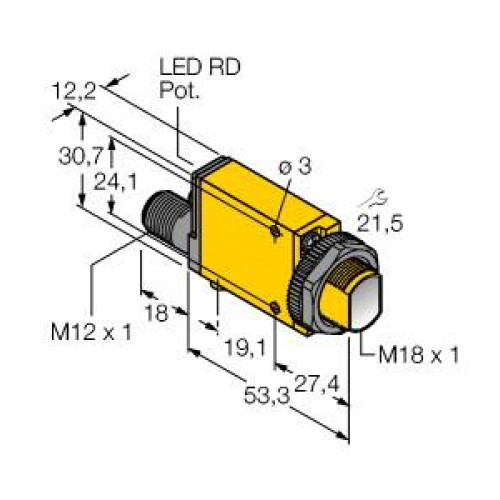

MINI-BEAM: Diffuse, Range: 300, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 4-pin M12 Integral QD

Manufacturer's No: SM312DBZQD     Manufacturer: Turck Banner
MINI-BEAM: Diffuse, Range: 300, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 4-pin M12 Integral QD

Availability On Request

£144.27
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 300 mm
  • Male M12 × 1, 4-pin
  • Protection class: IP67
  • Sensitivity adjustable via potentiometer
  • Alignment indicator
  • Switching output, bipolar
  • Light/dark operation


Product

Manufacturer Material ID -
SM312DBZQD
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
71.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
1 Millisecond
Setting procedure -
Other
Switching frequency -
500 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.3 Millimetre
