3047273

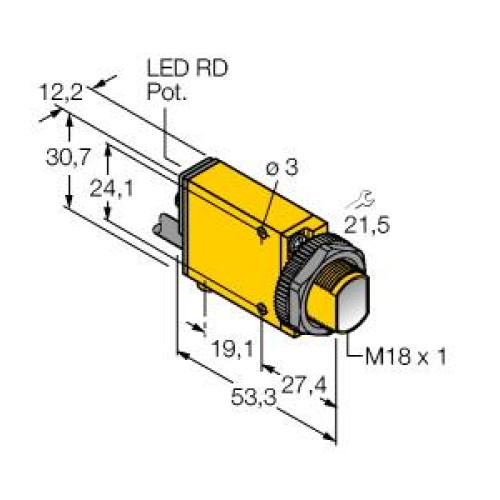

MINI-BEAM: Visible Blue 475 nm Plastic Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m

Manufacturer's No: SM312FPB     Manufacturer: Turck Banner
MINI-BEAM: Visible Blue 475 nm Plastic Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability On Request

£221.40
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Cable Length: 2 meters
  • Cable Type: PVC
  • Protection Class: IP67
  • Sensitivity Adjustment: Via Potentiometer
  • Alignment Indicator
  • Switching Output: Bipolar
  • Light/Dark Operation


Product

Manufacturer Material ID -
SM312FPB
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
25 Milliampere
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Blue light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
12.3 Millimetre
Turck Banner

Availability On Request

£221.40
