3026986

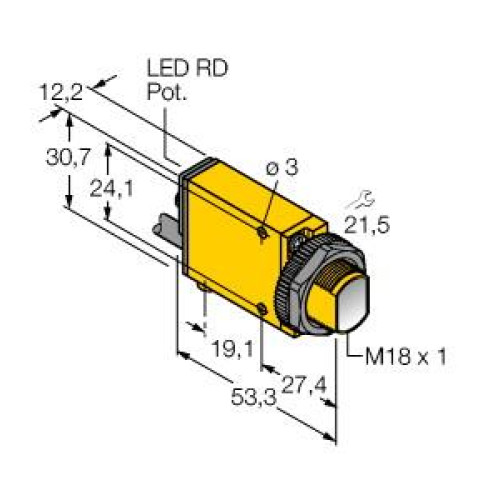

SM312FPH MINIBEAM SCANNER PLAST FIB ONLY/W/SUPER BRT LED

Manufacturer's No: SM312FPH     Manufacturer: Turck Banner
SM312FPH MINIBEAM SCANNER PLAST FIB ONLY/W/SUPER BRT LED

Availability On Request

£154.25
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • Cable length: 2 meters, PVC material
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Alignment indicator
  • Switching output: bipolar
  • Light/dark operation


Product

Manufacturer Material ID -
SM312FPH
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
25 Milliampere
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
12.3 Millimetre
Turck Banner

Availability On Request

£154.25
