3050969

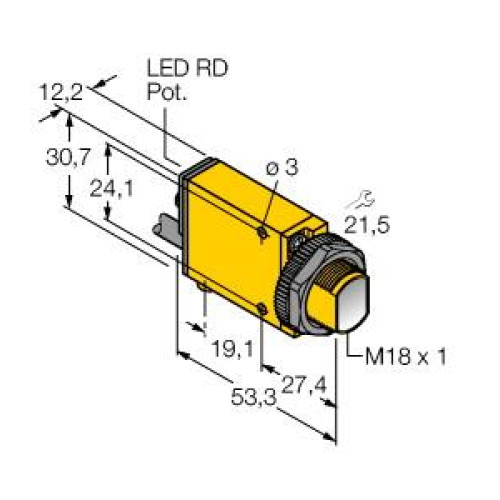

MINIBEAM: Visible Green 525 nm Glass Fiber Optic; Range: depends on fiber used; Input: 1030V dc; Output: Bipolar: 1 NPN; 1 PNP; 2

Manufacturer's No: SM312FVG
MINIBEAM: Visible Green 525 nm Glass Fiber Optic; Range: depends on fiber used; Input: 1030V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m 6.5 ft Cable;

Availability Back Order

£194.70
  • Type: MINIBEAM Visible Green 525 nm Glass Fiber Optic
  • Input: 1030V dc
  • Output: Bipolar with 1 NPN and 1 PNP
  • Cable Length: 2 meters (6.5 feet)
  • Range: Variable based on fiber used


Product

Manufacturer Material ID -
SM312FVG
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
25 Milliampere
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Green light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
12.3 Millimetre


Availability Back Order

£194.70
