3025724

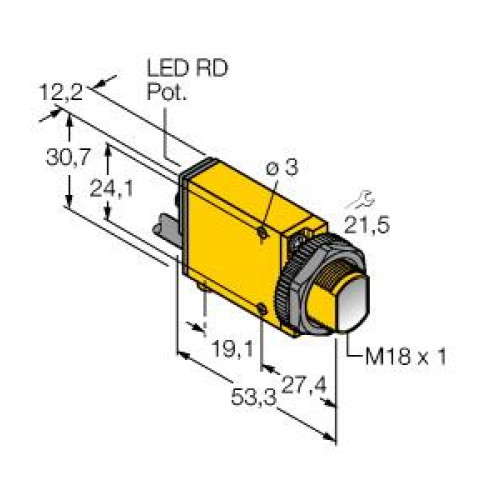

MINI-BEAM: Emitter, Range: 30 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) cable

Manufacturer's No: SM31EL     Manufacturer: Turck Banner
MINI-BEAM: Emitter, Range: 30 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) cable

Availability On Request

£86.20
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 10-30 VDC
  • Maximum range: 30000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67


Product

Manufacturer Material ID -
SM31EL
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
30000 Millimetre
Rated switching distance -
30000 Millimetre
Reaction time -
1 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.3 Millimetre
Turck Banner

Availability On Request

£86.20
