35667 {B}

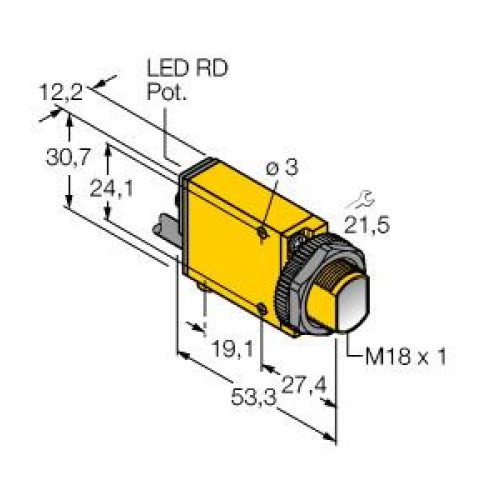

MINI-BEAM: High Speed Emitter, Input: 10-30 V dc, Output: Not Applicable, MHS Response Time = 0.3 ms, 150 (6 in) M12 Pigtail QD

Manufacturer's No: SM31EMHSQDP     Manufacturer: Turck Banner
MINI-BEAM: High Speed Emitter, Input: 10-30 V dc, Output: Not Applicable, MHS Response Time = 0.3 ms, 150 (6 in) M12 Pigtail QD

Availability Available to order

£102.55
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 3000 mm
  • Cable Length: 0.15 m
  • Cable Type: 4-pin, PVC, Male end M12 x 1, 150 mm
  • Protection Class: IP67


Product

Manufacturer Material ID -
SM31EMHSQDP
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
0.3 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.3 Millimetre
Turck Banner

Availability Available to order

£102.55
