3026842

MINI-BEAM: Emitter, Range: 3 m, Input: 24-240 V ac, Output: Not Applicable, 3-pin Micro Integral QD

Manufacturer's No: SMA31EQD     Manufacturer: Turck Banner
MINI-BEAM: Emitter, Range: 3 m, Input: 24-240 V ac, Output: Not Applicable, 3-pin Micro Integral QD

Availability On Request

£107.98
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 24-240 VAC
  • Max. range: 3000 mm
  • Connector: 1/2"
  • Protection class: IP67
  • Operating voltage: 24-240 VDC


Product

Manufacturer Material ID -
SMA31EQD
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

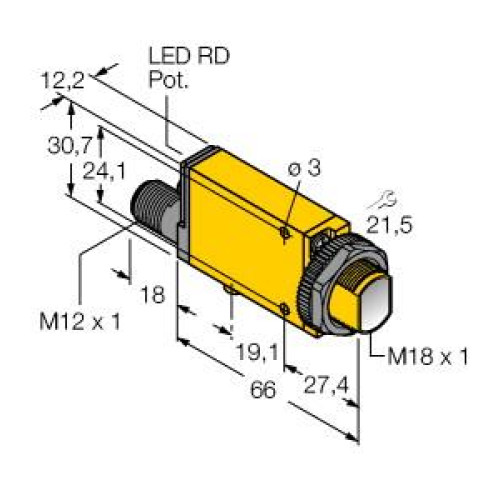

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
84 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
2 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.2 Millimetre
Turck Banner

Availability On Request

£107.98
