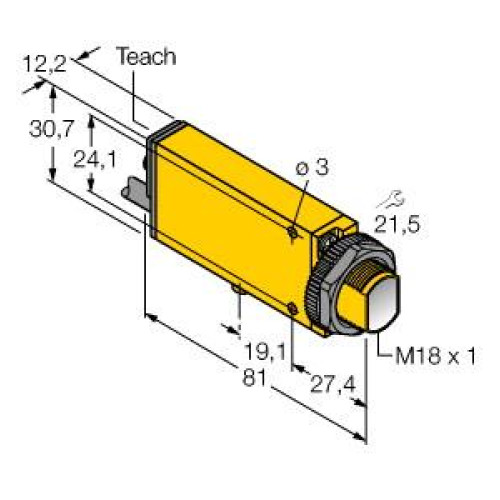

MINI-BEAM UNIVERSAL: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 24-240 V ac/dc, Output: SPDT Electromechanical Re

Manufacturer's No: SMU315F     Manufacturer: Turck Banner
MINI-BEAM UNIVERSAL: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 24-240 V ac/dc, Output: SPDT Electromechanical Relay, 2 m (6.5 ft) cable

Availability On Request

£210.51
  • Photoelectric sensor for glass fibers
  • Operating voltage: 24-240 VAC / 24-240 VDC
  • Cable length: 2 meters, PVC material
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Alignment indicator
  • Relay output


Product

Manufacturer Material ID -
SMU315F
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
81 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
25 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Width amplifier -
12.3 Millimetre
Turck Banner

Availability On Request

£210.51
