3055043

MINI-BEAM UNIVERSAL: Vsbl. Red Plastic Fiber Opti, Range: Depends on Fiber, Input: 24-240 V ac/dc, Output: SPDT Electromechanical

Manufacturer's No: SMU315FP     Manufacturer: Turck Banner
MINI-BEAM UNIVERSAL: Vsbl. Red Plastic Fiber Opti, Range: Depends on Fiber, Input: 24-240 V ac/dc, Output: SPDT Electromechanical Relay, 2 m (6.5 ft) Cable

Availability On Request

£222.30
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 24-240 VAC / 24-240 VDC
  • Cable Length: 2 meters
  • Cable Type: PVC
  • Protection Class: IP67
  • Sensitivity Adjustment: Via potentiometer
  • Alignment Indicator: Yes
  • Relay Output


Product

Manufacturer Material ID -
SMU315FP
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

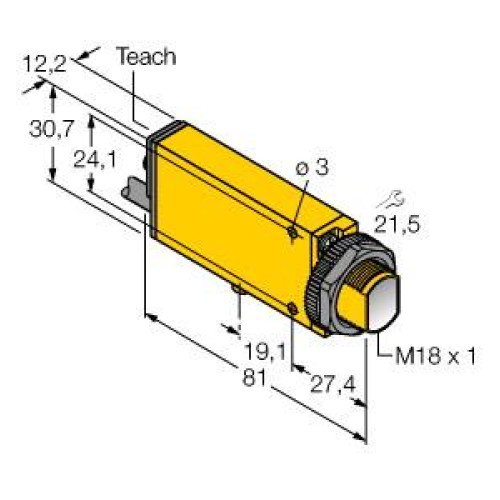

Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
81 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
25 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Width amplifier -
12.3 Millimetre
Turck Banner

Availability On Request

£222.30
