2CSS275101R0104

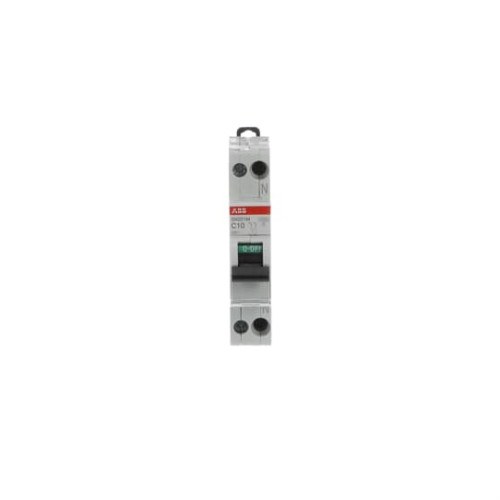

SN201 M-C10 Miniature circuit breaker - 1+NP - C - 10 A

Manufacturer's No: SN201MC10     Manufacturer: ABB
SN201 M-C10 Miniature circuit breaker - 1+NP - C - 10 A

Availability Back Order

£40.68
  • Model: SN201 M-C10
  • Type: Miniature Circuit Breaker
  • Configuration: 1P+N
  • Rated Current: 10 A
  • Module Size: 1
  • Function: Protects circuits from overload and short circuit
  • Neutral Position: Right


Product

Manufacturer Material ID -
SN201MC10
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
10 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
1 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
1.9 Watt
Rated current -
10 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
10 kiloampere
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability Back Order

£40.68
