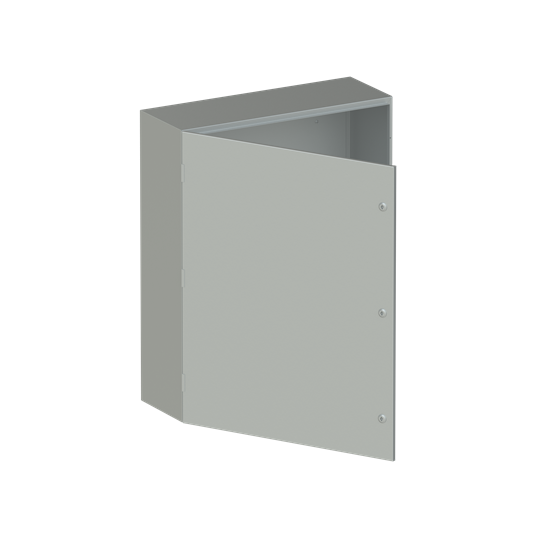

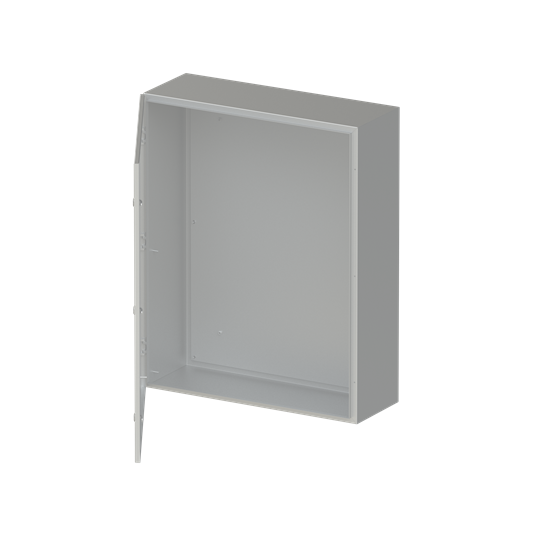

SRN10830X

SRX-SRN10830X SRX Enclosure

Manufacturer's No: SRN10830X     Manufacturer: ABB
SRX-SRN10830X SRX Enclosure

Availability On Request

£1,574.56
  • SRX-SRN10830X SRX Enclosure
  • Enclosure blind door plate made of stainless steel
  • Dimensions: 1000 mm x 800 mm x 300 mm


Product

Manufacturer Material ID -
SRN10830X
Net Weight -
50.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

RAL-number -
-
Number of conduit inlets -
-
Nominal current (In) -
- Ampere
Built-in depth -
232 Millimetre
Type of cover -
Door
Material housing -
Stainless steel
Impact strength -
IK10
Degree of protection (IP) -
IP66
Circuit integrity -
None
Colour -
Grey
Cover model -
None
Degree of protection (IP rating) -
IP66
Degree of protection (NEMA) -
4X
Depth -
300 Millimetre
Height -
1000 Millimetre
Housing material -
Stainless steel
Impact resistance (IK rating) -
IK10
Internal depth -
283.5 Millimetre
Mounting method -
Surface mounted
Number of modules -
180
Number of openings for flange plates -
2
Number of rows -
5
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
Recess depth -
232 Millimetre
Suitable for outdoor use -
Surface protection -
Untreated
Type of covering -
Door
Type of door -
Single
Width -
800 Millimetre
Width in number of modular spacings -
36
With lock -
With mounting plate -
ABB

Availability On Request

£1,574.56
