SRN6420VX

SRX-SRN6420VX SRX Enclosure

Manufacturer's No: SRN6420VX     Manufacturer: ABB

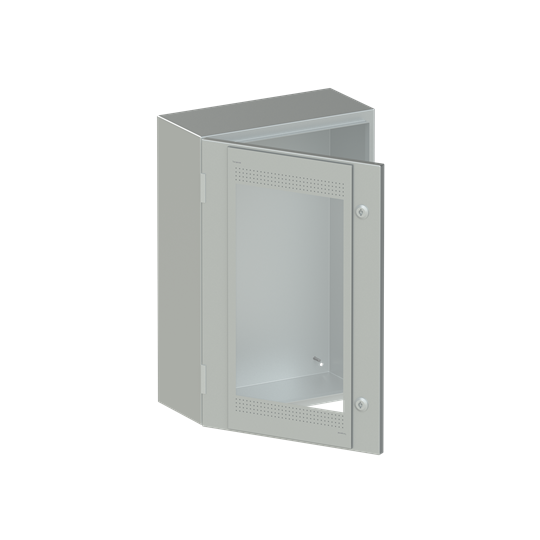

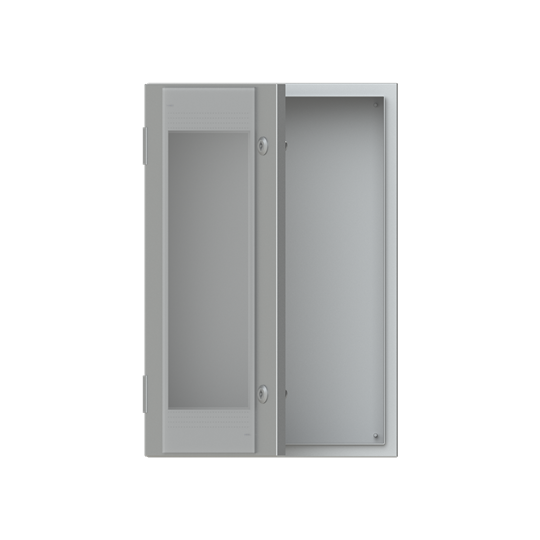

SRX-SRN6420VX SRX Enclosure

Availability Available to order

£911.98
  • SRX-SRN6420VX SRX Enclosure
  • Enclosure with stainless steel glass door
  • Dimensions: 600mm x 400mm x 200mm


Product

Manufacturer Material ID -
SRN6420VX
Net Weight -
11.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Colour -
UN
RAL-number -
-
Surface protection -
UN
Number of rows -
-
Number of conduit inlets -
-
Width in number of modular spacings -
-
Number of modules -
-
Nominal current (In) -
- Ampere
Built-in depth -
132 Millimetre
Type of cover -
Door
Material housing -
Stainless steel
Impact strength -
IK09
Degree of protection (IP) -
IP66
Circuit integrity -
None
Cover model -
None
Degree of protection (IP rating) -
IP66
Degree of protection (NEMA) -
4X
Depth -
200 Millimetre
Height -
600 Millimetre
Housing material -
Stainless steel
Impact resistance (IK rating) -
IK09
Internal depth -
183.5 Millimetre
Mounting method -
Surface mounted
Number of openings for flange plates -
2
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
Recess depth -
132 Millimetre
Suitable for outdoor use -
Transparent cover/door -
Type of covering -
Door
Type of door -
Single
Width -
400 Millimetre
With lock -
ABB

Availability Available to order

£911.98
