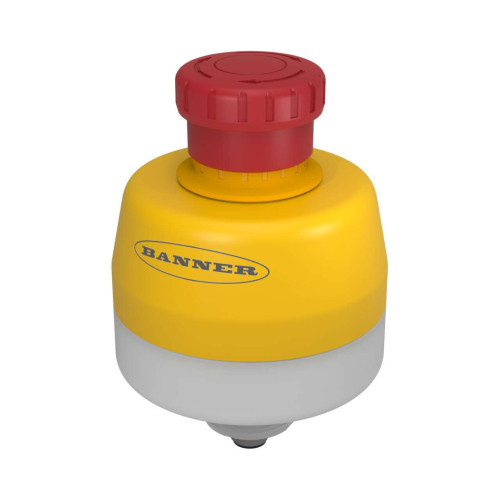

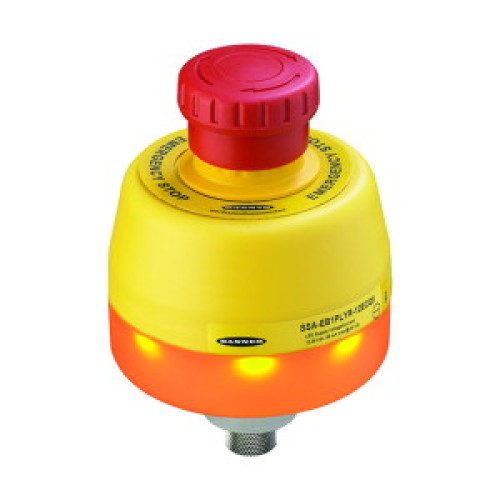

SSA-EB1 30 Mount Emergency Stop Push Button, Green and Red Flash/Solid Illuminated Base, 40 Actuator, IP65, Contacts: 2NC/1NO-PNP,

Manufacturer's No: SSA-EB1PLGR-12ECQ8     Manufacturer: Turck Banner
SSA-EB1 30 Mount Emergency Stop Push Button, Green and Red Flash/Solid Illuminated Base, 40 Actuator, IP65, Contacts: 2NC/1NO-PNP, 8-pin M12 Integral QD

Availability On Request

£249.92
  • Emergency shutdown button with illuminated E-stop feature
  • Protection class: IP65

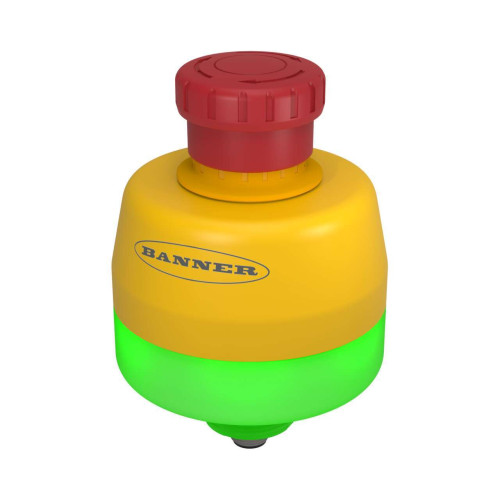

  • Non-actuated lighting: green steady

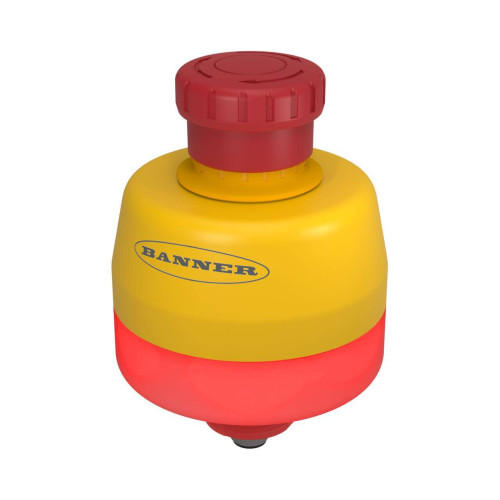

  • Lighting circuit externally interrupted: red steady
  • Actuated lighting: red flashing
  • 2 safety outputs: NC, potential-free
  • 1 auxiliary output: NO, PNP
  • Connector: M12 x 1 male, 8-pin


Product

Manufacturer Material ID -
SSA-EB1PLGR-12ECQ8
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Connection type auxiliary circuit -
Other
Degree of protection (IP rating) -
IP65
