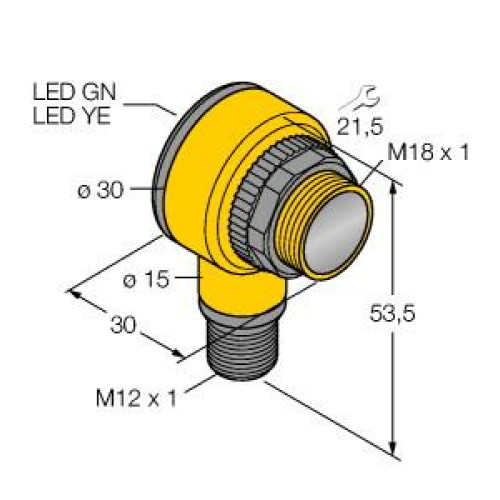

3034929

EZBEAM T18 Series: Retro; Range: 2 m; Input: 20250 V ac; Output: SPST Solidstate Dark Operate; Micro 4pin Integral QD;

Manufacturer's No: T18RW3LQ1
EZBEAM T18 Series: Retro; Range: 2 m; Input: 20250 V ac; Output: SPST Solidstate Dark Operate; Micro 4pin Integral QD;

Availability Back Order

£123.84
  • Model: EZBEAM T18 Series
  • Type: Retro
  • Range: 2 meters
  • Input: 20250 V AC
  • Output: SPST Solidstate Dark Operate
  • Connector: Micro 4-pin Integral QD


Product

Manufacturer Material ID -
T18RW3LQ1
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
950 Nanometre
Width sensor -
30 Millimetre


Availability Back Order

£123.84
