3033431

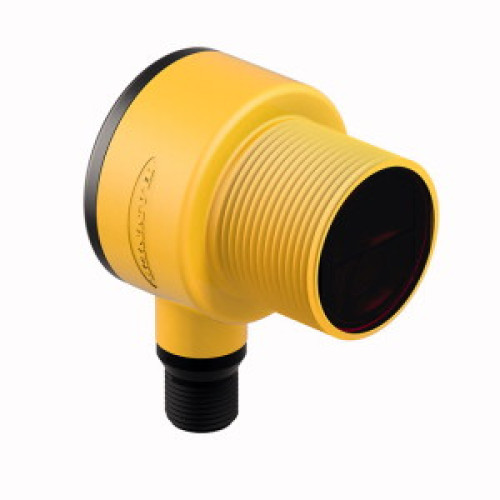

EZ-BEAM T30 Series: Fixed Field, Range: 400, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 4-pin Micro Integral QD

Manufacturer's No: T30AW3FF400Q1     Manufacturer: Turck Banner
EZ-BEAM T30 Series: Fixed Field, Range: 400, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 4-pin Micro Integral QD

Availability On Request

£160.60
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 20-250 VAC
  • Maximum range: 400 mm
  • M12 × 1 male connector with 4-pin configuration
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40 °C to +70 °C


Product

Manufacturer Material ID -
T30AW3FF400Q1
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32111506

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Diameter sensor -
30 Millimetre
Height of sensor -
64 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
400 Millimetre
Rated switching distance -
400 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£160.60
