3080573

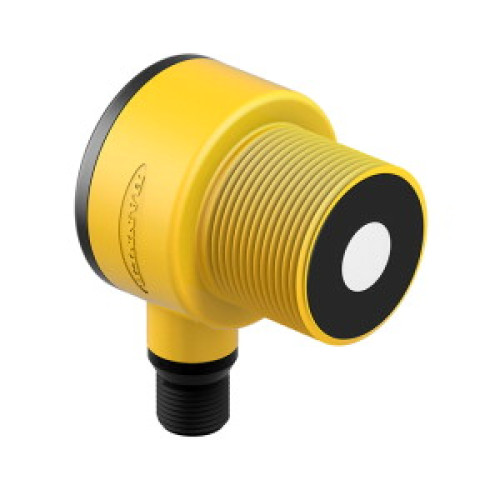

Ultrasonic Sensor, diffuse mode sensor, With Switching Outputs

Manufacturer's No: T30UDPAQ-CRFV     Manufacturer: Turck Banner
Ultrasonic Sensor, diffuse mode sensor, With Switching Outputs

Availability On Request

POA
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 12-24 VDC
  • Max. range: 500 mm
  • Compact design with male M12 x 1 connection
  • Two PNP transistor outputs
  • Two independent switching ranges adjustable via button or control line
  • Blind zone: 15 cm
  • Range: 100 cm


Product

Manufacturer Material ID -
T30UDPAQ-CRFV
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
150 Millimetre
Supply voltage -
12 Volt
Switching frequency -
20 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

POA
