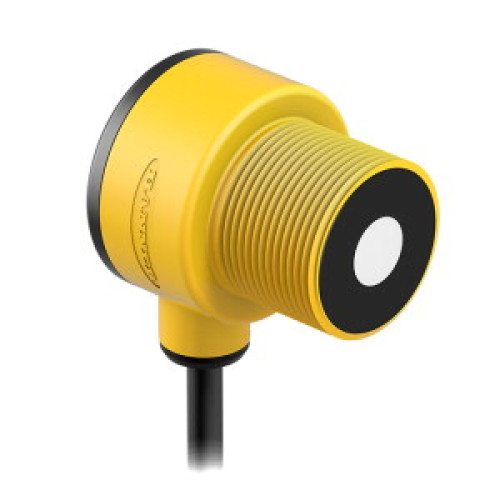

Ultrasonic Sensor, diffuse mode sensor, With Analog Output

Manufacturer's No: T30UIPB-CRFV     Manufacturer: Turck Banner
Ultrasonic Sensor, diffuse mode sensor, With Analog Output

Availability Available to order

POA
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 15-24 VDC
  • Max. range: 1000 mm
  • Compact design
  • Cable length: 2 m
  • PNP transistor output and analog output
  • Measuring range adjustable via teach-in
  • Blind zone: 30 cm
  • Range: 200 cm


Product

Manufacturer Material ID -
T30UIPB-CRFV
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius

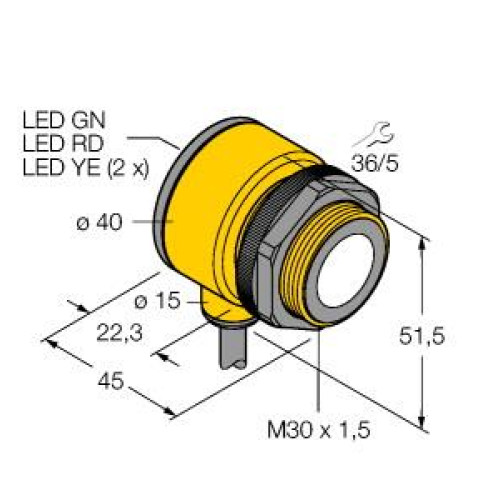

Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
300 Millimetre
Supply voltage -
15 Volt
Switching frequency -
20 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner
