3055993

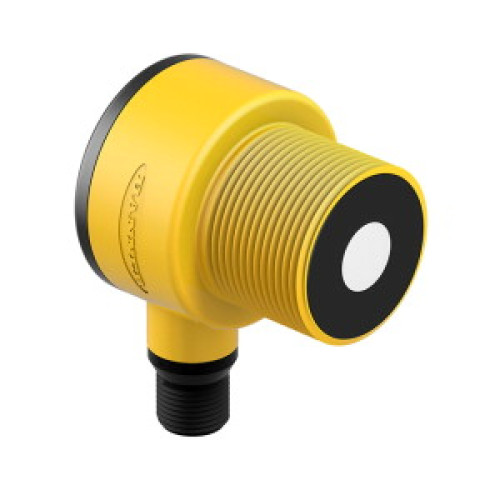

Analog/Discrete T30U Series: Proximity Mode, Range: 300 - 2 m, Input: 15-24 V dc, Outputs: Discrete: PNP, Analog: 0-10 V dc, M12 I

Manufacturer's No: T30UUPBQ     Manufacturer: Turck Banner
Analog/Discrete T30U Series: Proximity Mode, Range: 300 - 2 m, Input: 15-24 V dc, Outputs: Discrete: PNP, Analog: 0-10 V dc, M12 Integral QD

Availability On Request

£511.75
  • Type: Ultrasonic Sensor
  • Mode: Diffuse
  • Output: Analog
  • Operating Voltage: 15-24 VDC
  • Max. Range: 2000 mm
  • Compact design
  • Connection: Male M12 x 1
  • Output Types: PNP transistor and analog voltage
  • Measuring Range Adjustable via Teach-in
  • Blind Zone: 30 cm

Read more

  • Range: 200 cm


Product

Manufacturer Material ID -
T30UUPBQ
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

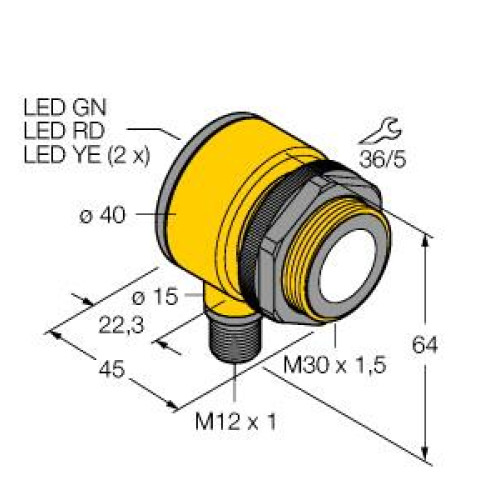

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
300 Millimetre
No load current -
50 Milliampere
Supply voltage -
15 Volt
Switching frequency -
20 Hertz
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
Other
Turck Banner
