3080484

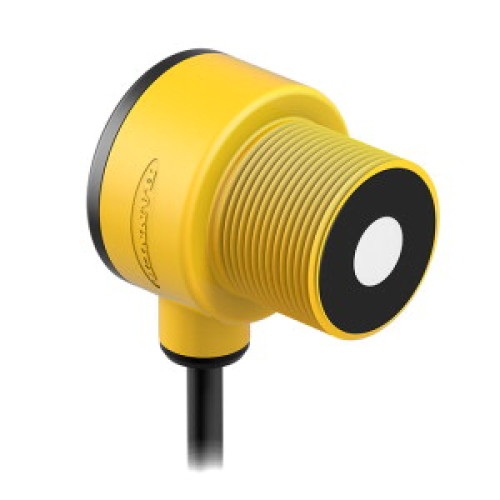

T30UX Series w/ Analog Output, Range: 200 - 2 m, Input: 10-30 V dc, Analog Output: 4-20 mA, 2 m (6.5 ft) Cable

Manufacturer's No: T30UXIB     Manufacturer: Turck Banner
T30UX Series w/ Analog Output, Range: 200 - 2 m, Input: 10-30 V dc, Analog Output: 4-20 mA, 2 m (6.5 ft) Cable

Availability On Request

£459.12
  • Type: Ultrasonic Sensor
  • Mode: Diffuse
  • Output: Analog, 4-20 mA
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 2 m
  • Compact design
  • Response Time: Adjustable
  • Integrated Temperature Compensation
  • Measuring Range: Adjustable via teach-in

Read more

  • Blind Zone: 20 cm
  • Range: 200 cm


Product

Manufacturer Material ID -
T30UXIB
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
200 Millimetre
Supply voltage -
10 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of switching output -
Other
Turck Banner

Availability On Request

£459.12
