3080476

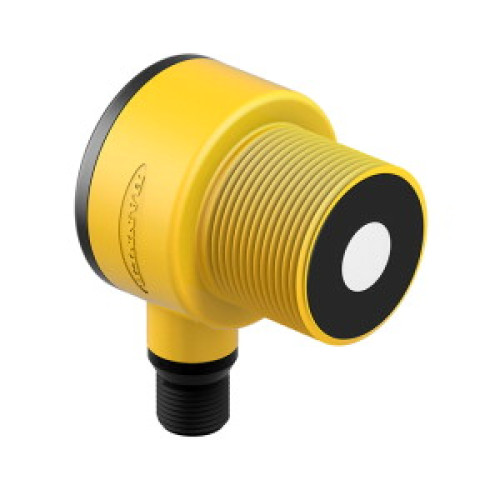

T30UX Series w/ Analog Output, Range: 300 - 3 m, Input: 12-30 V dc, Analog Output: 0-10 V dc, 4-pin M12 Integral QD

Manufacturer's No: T30UXUCQ8     Manufacturer: Turck Banner
T30UX Series w/ Analog Output, Range: 300 - 3 m, Input: 12-30 V dc, Analog Output: 0-10 V dc, 4-pin M12 Integral QD

Availability On Request

£474.55
  • Type: Ultrasonic Sensor (diffuse mode)
  • Output: Analog 0-10 V
  • Operating Voltage: 10-30 VDC
  • Max. Range: 3000 mm
  • Compact design with integrated temperature compensation
  • Response time adjustable
  • Measuring range adjustable via teach-in
  • Blind Zone: 30 cm
  • Range: 300 cm
  • Cable: M12 x 1, 4-pin male end


Product

Manufacturer Material ID -
T30UXUCQ8
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
300 Millimetre
Supply voltage -
10 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
Type of switching output -
Other
Turck Banner

Availability On Request

£474.55
