1SDA054125R1

T4S 320 PR221DS-LS/I In=320 3p F F

Manufacturer's No: T4S320     Manufacturer: ABB
T4S 320 PR221DS-LS/I In=320 3p F F

Availability Back Order

£1,834.70

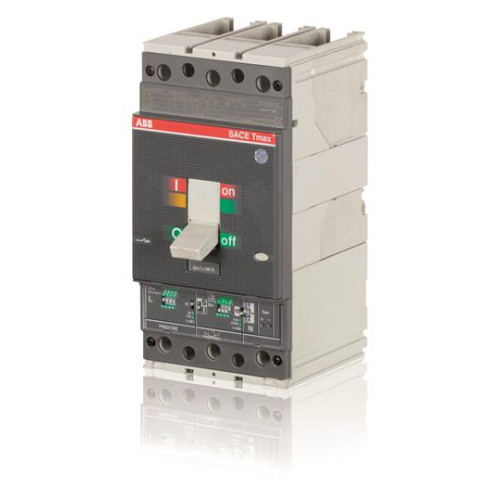

C.BREAKER TMAX T4S 320 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 320


Product

Manufacturer Material ID -
T4S320
Net Weight -
3.50kg

Additional Product Information

Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Number of auxiliary contacts as change-over contact -
-
Degree of protection (IP) -
UN
Rated permanent current Iu -
320 Ampere
Number of poles -
3
Overload release current setting -
128 Ampere
Rated voltage -
690 Volt
Degree of protection (IP rating) -
IP20
Position of connection for main current circuit -
Front
Type of electrical connection of main circuit -
Bolt connection
Type of control element -
Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
50 kiloampere
Adjustment range short-term delayed short-circuit release -
320 Ampere
Adjustment range undelayed short-circuit release -
320 Ampere
Motor drive optional -
Device construction -
Built-in device fixed built-in technique
Complete device with protection unit -
ABB

Availability Back Order

£1,834.70
