1SDA054325R1

T5N 400 PR221DS-LS/I In=400 4p F F

Manufacturer's No: T5N400     Manufacturer: ABB

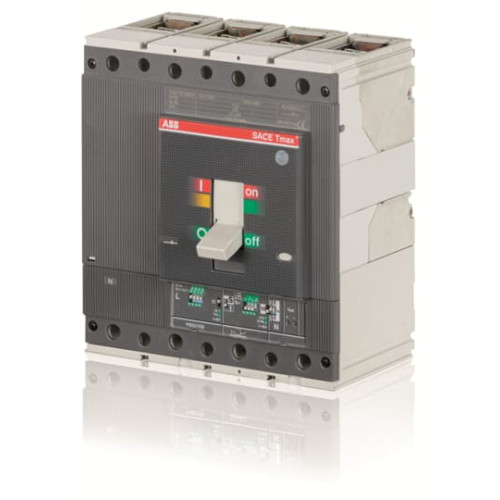

T5N 400 PR221DS-LS/I In=400 4p F F

Availability Back Order

£2,533.80
  • Model: T5N 400 PR221DS-LS/I
  • Current Rating: 400A
  • Number of Poles: 4
  • Trip Unit: Solid-State Release
  • Terminals: Front
  • Circuit Breaker Type: Fixed
  • Suitable for AC applications
  • Model: TMAX T5N 400
  • Rated Current: 400A
  • Four-pole configuration


Product

Manufacturer Material ID -
T5N400
Net Weight -
6.60kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range short-term delayed short-circuit release -
400 Ampere
Adjustment range undelayed short-circuit release -
400 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
160 Ampere
Position of connection for main current circuit -
Front
Power loss -
16.5 Watt
Rated permanent current Iu -
400 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
