1SDA054437R1

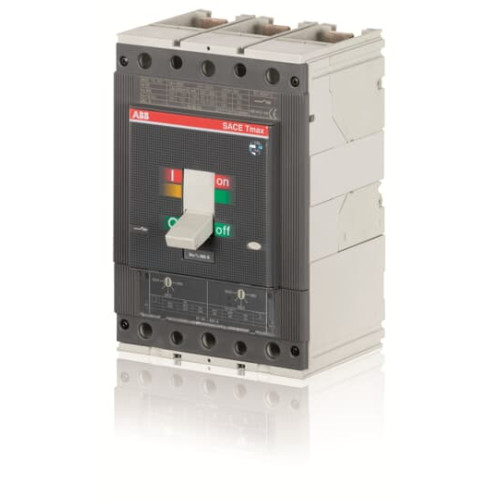

T5N 400 TMA 400-4000 3p F F

Manufacturer's No: T5N400TMA400     Manufacturer: ABB
T5N 400 TMA 400-4000 3p F F

Availability Back Order

£1,788.86
  • Circuit Breaker: TMAX T5N 400
  • Type: Fixed three-pole
  • Front terminals
  • Thermomagnetic release
  • Current Range: 2000A to 4000A


Product

Manufacturer Material ID -
T5N400TMA400
Net Weight -
5.03kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range undelayed short-circuit release -
2000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
280 Ampere
Position of connection for main current circuit -
Front
Power loss -
19.5 Watt
Rated permanent current Iu -
400 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£1,788.86
