1SDA060273R1

T6N 800 PR221DS-LS/I In=800 4p F F

Manufacturer's No: T6N800     Manufacturer: ABB
T6N 800 PR221DS-LS/I In=800 4p F F

Availability Back Order

£4,652.20

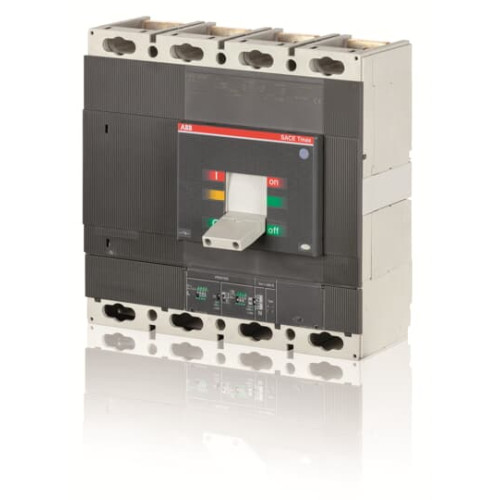

C.BREAKER TMAX T6N 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 800


Product

Manufacturer Material ID -
T6N800
Net Weight -
14.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Adjustment range short-term delayed short-circuit release -
1000 Ampere
Adjustment range undelayed short-circuit release -
1000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
320 Ampere
Position of connection for main current circuit -
Front
Power loss -
32 Watt
Rated permanent current Iu -
800 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£4,652.20
