1SDA062037R1

T7D 1250 4p F F

Manufacturer's No: T7D12504PFF     Manufacturer: ABB
T7D 1250 4p F F

Availability Back Order

£5,073.45

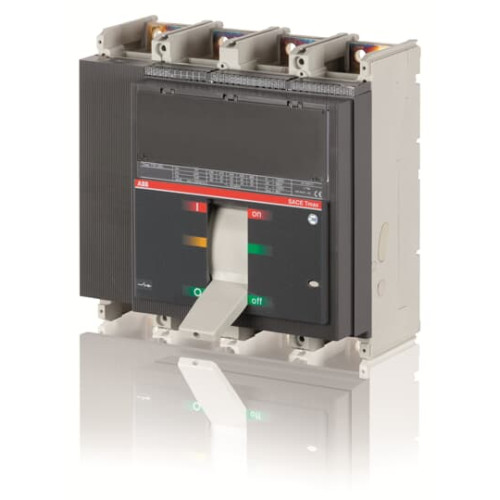

SWITCH-DISCONNECTOR TMAX T7D 1250 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM


Product

Manufacturer Material ID -
T7D12504PFF
Net Weight -
12.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Type of control element -
Toggle
Colour control element -
Grey
Degree of protection (IP), front side -
IP20
Degree of protection (NEMA) -
1
Depth -
154 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
268 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
0 Volt
Rated permanent current at AC-21, 400 V -
1250 Ampere
Rated permanent current Iu -
1250 Ampere
Rated short-time withstand current lcw -
20 kiloampere
Suitable for distribution board installation -
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Voltage release optional -
Width -
280 Millimetre
ABB

Availability Back Order

£5,073.45
