1SDA062880R1

T7S 1250 PR332/P LSIRc In=1250A 4p F F

Manufacturer's No: T7S1250     Manufacturer: ABB
T7S 1250 PR332/P LSIRc In=1250A 4p F F

Availability Back Order

£9,239.75

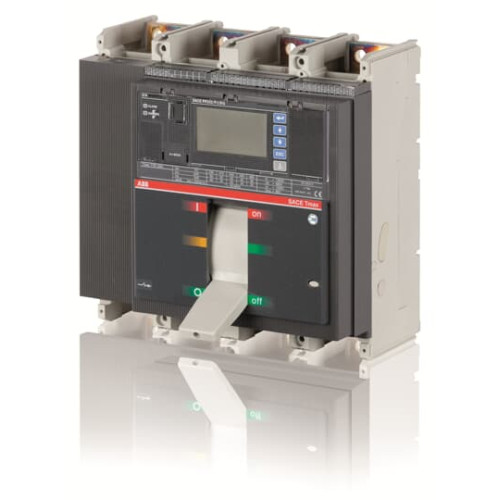

C.BREAKER TMAX T7S 1250 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR332/P-LSIRc R 1250


Product

Manufacturer Material ID -
T7S1250
Net Weight -
12.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
50 kiloampere
Adjustment range short-term delayed short-circuit release -
750 Ampere
Adjustment range undelayed short-circuit release -
1875 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
500 Ampere
Position of connection for main current circuit -
Front
Power loss -
47 Watt
Rated permanent current Iu -
1250 Ampere
Rated voltage -
690 Volt
Type of control element -
Toggle
Type of electrical connection of main circuit -
Bolt connection
ABB

Availability Back Order

£9,239.75
