3066672

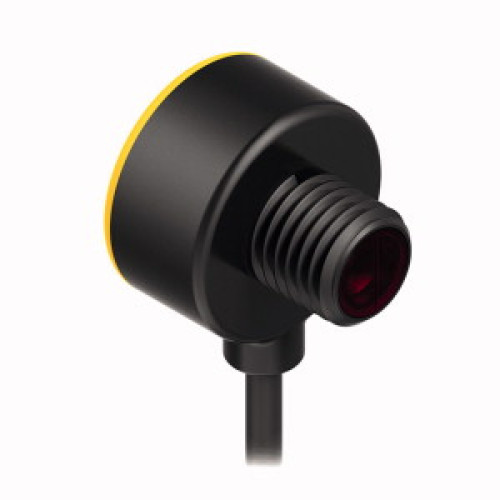

T8 Series: Opposed Mode, Range: 2000, Input: 10-30 V dc, Output: Not Applicable, 3-pin M8 Pigtail QD

Manufacturer's No: T86EVQ     Manufacturer: Turck Banner
T8 Series: Opposed Mode, Range: 2000, Input: 10-30 V dc, Output: Not Applicable, 3-pin M8 Pigtail QD

Availability On Request

£83.48
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Miniature sensor with a compact design
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.15 m, with male end
  • Cable Type: PVC, M8 × 1, 150 mm
  • Protection Class: IP67
  • Ambient Temperature: -20 to +55 °C
  • Ideal for confined spaces


Product

Manufacturer Material ID -
T86EVQ
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Housing material -
Plastic
Length of sensor -
15.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1 Millisecond
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Wavelength of the sensor -
660 Nanometre
Turck Banner

Availability On Request

£83.48
