3068684

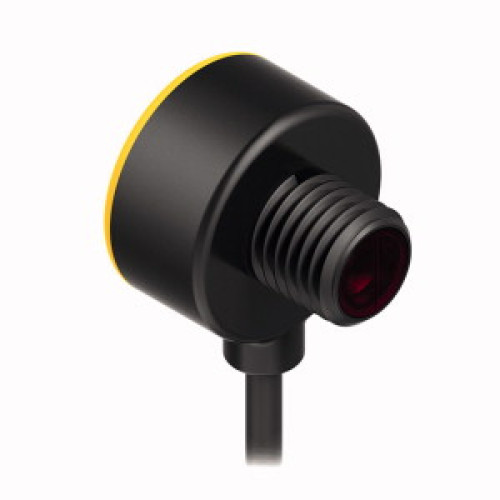

T8 Series: Diffuse, Range: 100, Input: 10-30 V dc, Output: NPN Light Operate, 2 m (6.5 ft) Cable

Manufacturer's No: T8AN6D100     Manufacturer: Turck Banner
T8 Series: Diffuse, Range: 100, Input: 10-30 V dc, Output: NPN Light Operate, 2 m (6.5 ft) Cable

Availability On Request

£128.85
  • Photoelectric sensor in diffuse mode
  • Miniature sensor ideal for confined spaces
  • Operating voltage: 10-30 VDC
  • Max. range: 100 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • Ambient temperature: -20 to +55 °C
  • NPN switching output for light operation


Product

Manufacturer Material ID -
T8AN6D100
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Housing material -
Plastic
Length of sensor -
15.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Wavelength of the sensor -
680 Nanometre
Turck Banner

Availability On Request

£128.85
