3066668

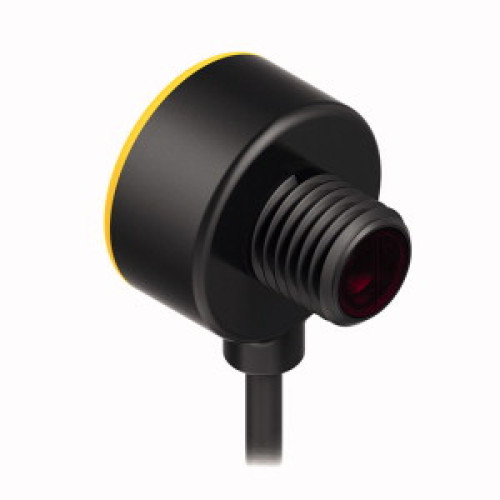

T8 Series: Opposed Mode, Range: 2000, Input: 10-30 V dc, Output: PNP Light Operate, 150 (6 in) M8 Pigtail QD

Manufacturer's No: T8AP6RQ     Manufacturer: Turck Banner
T8 Series: Opposed Mode, Range: 2000, Input: 10-30 V dc, Output: PNP Light Operate, 150 (6 in) M8 Pigtail QD

Availability On Request

£123.40
  • Type: Photoelectric Sensor (Opposed Mode - Emitter/Receiver)
  • Miniature sensor ideal for confined spaces
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.15 m, with male end
  • Cable Type: PVC, M8 × 1, 150 mm
  • Protection Class: IP67
  • Ambient Temperature: -20 to +55 °C
  • Output: PNP switching output, light operation


Product

Manufacturer Material ID -
T8AP6RQ
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Housing material -
Plastic
Length of sensor -
15.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Switching frequency -
666 Hertz
Type of electric connection -
Connector M8
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

£123.40
