6611959

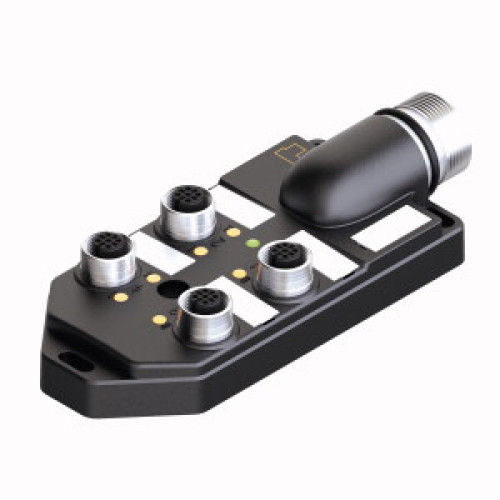

Passive Actuator/Sensor Box, M12 × 1, 4-port, with M23 Connector for Supply Cabl

Manufacturer's No: TB-4M12-5P3-CS19H     Manufacturer: Turck Banner
Passive Actuator/Sensor Box, M12 × 1, 4-port, with M23 Connector for Supply Cabl

Availability On Request

POA
  • Passive actuator/sensor box
  • M12 × 1, 4-port with M23 connector for supply cable
  • Voltage: 30 V
  • Housing material: Nylon, black color
  • Protection class: IP67
  • RoHS-compliant and CE compliant
  • LED with PNP circuit
  • I/O port: 4-pin + PE


Product

Manufacturer Material ID -
TB-4M12-5P3-CS19H
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
US
UNSPSC -
26121629

Technical Specification

Housing colour -
Black
Housing material -
Plastic
Material contact body -
Brass
Material insulation body -
PA
Material of contact surface -
Gold
Operating temperature -
-40 Degrees celsius
Operating voltage -
30 Volt
Rated voltage -
30 Volt
Thread sleeves sensor/actuator slots -
M12
Type of branches for sensor-/actuator cables -
M12
Type of connector for trunk line -
M23 vertical
