6611931

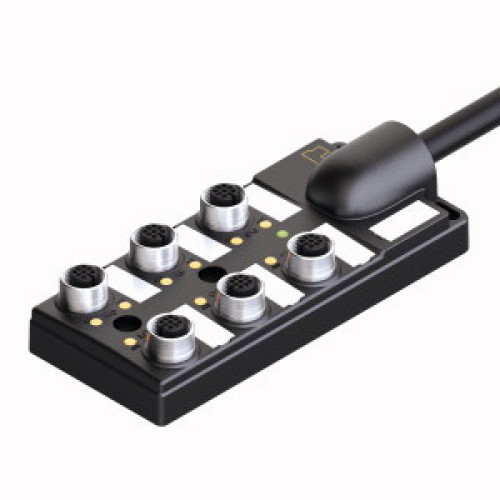

Passive actuator/sensor junction box, M12 x 1, 6-port, with integral homerun cab

Manufacturer's No: TB-6M12-4P2-5/TXL     Manufacturer: Turck Banner
Passive actuator/sensor junction box, M12 x 1, 6-port, with integral homerun cab

Availability On Request

POA
  • Passive actuator/sensor junction box
  • M12 x 1, 6-port
  • Integral homerun cable: 5 meters
  • Voltage: 30 V
  • Housing material: Nylon, black
  • Protection class: IP67
  • RoHS-compliant, CE compliant
  • LED (PNP circuit)
  • I/O port: 3-pin + PE


Product

Manufacturer Material ID -
TB-6M12-4P2-5/TXL
Net Weight -
0.99kg

Additional Product Information

Commodity Code -
85444290900
Country of Origin -
US
UNSPSC -
26121629

Technical Specification

Housing colour -
Black
Housing material -
Plastic
Length of the preassembled cable -
5 Metre
Material contact body -
Brass
Material insulation body -
PA
Material of contact surface -
Gold
Operating temperature -
-40 Degrees celsius
Operating voltage -
30 Volt
Rated voltage -
30 Volt
Thread sleeves sensor/actuator slots -
M12
Type of branches for sensor-/actuator cables -
M12
Type of connector for trunk line -
Other
Turck Banner

Availability On Request

POA
