6611943

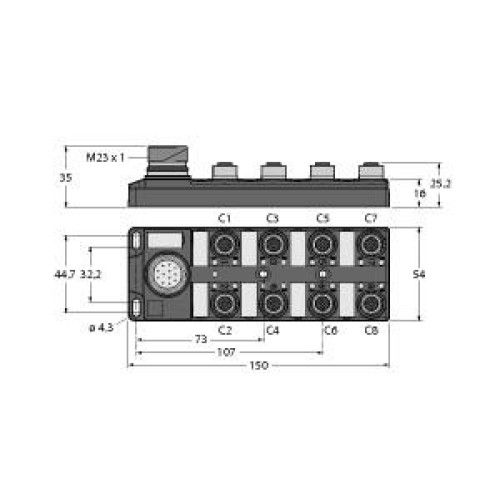

Passive Actuator/Sensor Box, M12 × 1, 8-port, with M23 Connector for Supply Cabl

Manufacturer's No: TB-8M12-5P3-CS19T     Manufacturer: Turck Banner
Passive Actuator/Sensor Box, M12 × 1, 8-port, with M23 Connector for Supply Cabl

Availability On Request

POA
  • Passive Actuator/Sensor Box
  • 8-port M12 × 1 with M23 Connector for Supply Cable
  • Voltage: 30 V
  • Housing Material: Nylon
  • Housing Color: Black
  • Protection Class: IP67
  • RoHS-compliant and CE compliant
  • LED with PNP circuit
  • I/O Port: 4-pin + PE


Product

Manufacturer Material ID -
TB-8M12-5P3-CS19T
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
US
UNSPSC -
26121629

Technical Specification

Housing colour -
Black
Housing material -
Plastic
Material contact body -
Brass
Material insulation body -
PA
Material of contact surface -
Gold
Operating temperature -
-40 Degrees celsius
Operating voltage -
30 Volt
Rated voltage -
30 Volt
Thread sleeves sensor/actuator slots -
M12
Type of branches for sensor-/actuator cables -
M12
Type of connector for trunk line -
M23 vertical
