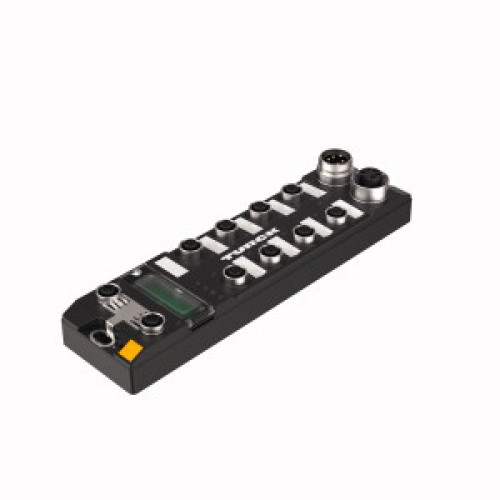

Compact multiprotocol I/O module for Ethernet, 16 Universal Digital Channels, Co

Manufacturer's No: TBEN-L1-16DXP     Manufacturer: Turck Banner
Compact multiprotocol I/O module for Ethernet, 16 Universal Digital Channels, Co

Availability On Request

POA
  • Compact multiprotocol I/O module for Ethernet
  • 16 Universal Digital Channels, configurable as PNP Inputs or 2A Outputs
  • PROFINET, EtherNet/IP, and Modbus TCP compatibility
  • Integrated Ethernet switch supporting 10 Mbps / 100 Mbps
  • 2x M12, 4-pin, D-coded Ethernet fieldbus connection
  • Glass fiber reinforced housing, shock and vibration tested
  • Fully potted module electronics with protection classes IP65, IP67, IP69K
  • Input diagnostics per port, output diagnostics per channel
  • Max. 2A per output, two freely selectable digital channels per port


Product

Manufacturer Material ID -
TBEN-L1-16DXP
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85176200000
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Degree of protection (IP rating) -
IP65

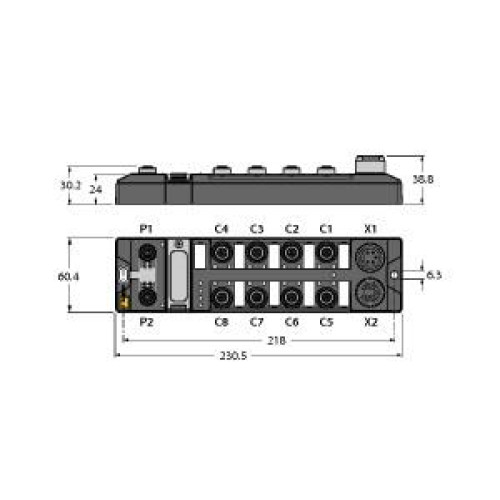

Depth -
60.4 Millimetre
Height -
38.8 Millimetre
Number of digital inputs -
16
Number of digital outputs -
16
Width -
230.5 Millimetre
Turck Banner

Availability On Request

POA
