42007 {B}

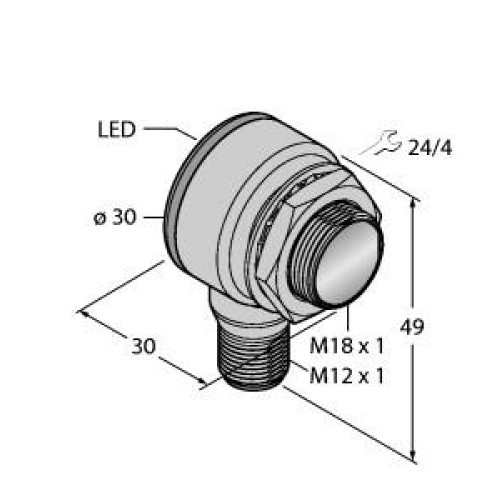

EZ-BEAM TM18: Emitter, Range: 20 m, Input: 10-30 V dc, Outputs: None, 4-pin M12 Integral QD

Manufacturer's No: TM186EQ8     Manufacturer: Turck Banner
EZ-BEAM TM18: Emitter, Range: 20 m, Input: 10-30 V dc, Outputs: None, 4-pin M12 Integral QD

Availability Available to order

£67.26
  • Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 20000 mm
  • M12 × 1 Male Connector, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • Metal Housing


Product

Manufacturer Material ID -
TM186EQ8
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Metal
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
1.5 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Wavelength of the sensor -
625 Nanometre
Width sensor -
30 Millimetre
Turck Banner

Availability Available to order

£67.26
