18021 {B}

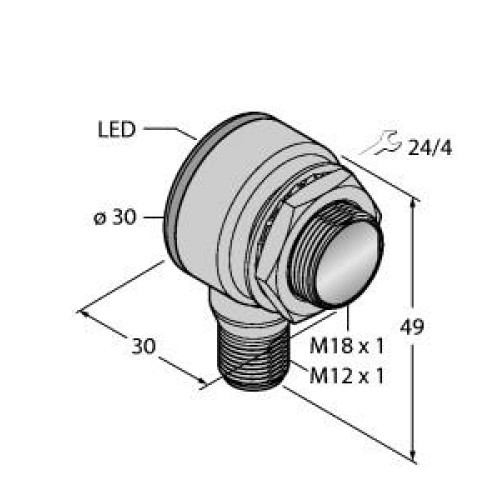

EZ BEAM TM18: Diffuse (Red), Range: 500, Input: 10-30 V dc, Outputs: PNP Light Operate, 4-pin M12 Integral QD

Manufacturer's No: TM18AP6DVQ8     Manufacturer: Turck Banner
EZ BEAM TM18: Diffuse (Red), Range: 500, Input: 10-30 V dc, Outputs: PNP Light Operate, 4-pin M12 Integral QD

Availability Available to order

£110.94
  • Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Max. range: 500 mm
  • Operating voltage: 10-30 VDC
  • M12 × 1 male connector, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40 °C to +70 °C
  • Metal housing with die-cast zinc housing
  • PNP switching output, light operation
  • 18 mm thread


Product

Manufacturer Material ID -
TM18AP6DVQ8
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Metal
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
500 Millimetre
Reaction time -
3 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
440 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Width sensor -
30 Millimetre
