7030386 {T}

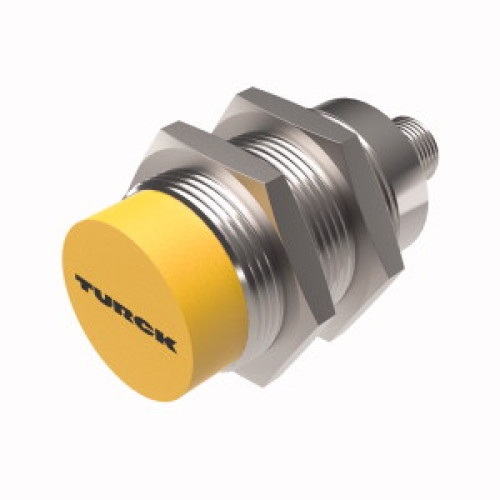

HF Read/Write Head, For Explosion Hazardous Areas or Areas with Extreme Requirem

Manufacturer's No: TN-EM30WD-H1147-EX     Manufacturer: Turck Banner
HF Read/Write Head, For Explosion Hazardous Areas or Areas with Extreme Requirem

Availability Available to order

POA
  • HF Read/Write Head for Explosion Hazardous Areas or Areas with Extreme Requirements
  • Operating voltage: 10-30 VDC

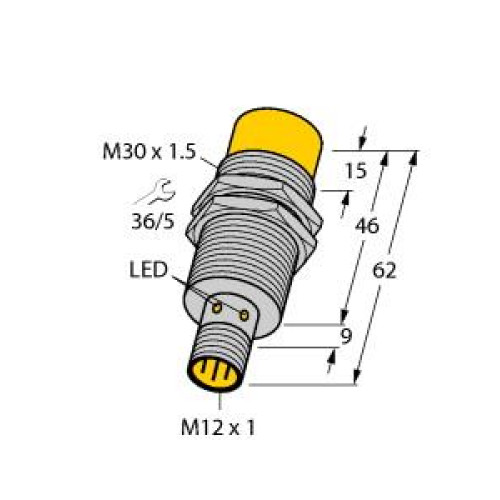

  • Non-flush M30 × 1.5 threaded tube made of stainless steel 1.4404
  • Front cap crafted from liquid crystal polymer
  • High protection class IP69K for harsh environments
  • Special double-lip seal for enhanced protection
  • Resistant to common acidic and alkaline cleaning agents
  • Suitable for food industry applications
  • Laser-engraved label for permanent legibility
  • Powered and operated via BL ident interface module

Read more

  • M12 × 1 connector for connection via BL ident extension cable
  • ATEX category II 3 G, Ex zone 2 and ATEX category II 3 D, Ex zone 22


Product

Manufacturer Material ID -
TN-EM30WD-H1147-EX
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
84719000000
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Degree of protection (IP rating) -
Other
Depth -
62 Millimetre
Diameter -
30 Millimetre
Frequency -
13.56 Megahertz
Housing material -
Stainless steel
Max. transmission range -
77 Millimetre
Radio protocol -
ISO 15693
Type of electric connection -
Plug-in connection
Type of voltage (input voltage) -
DC
