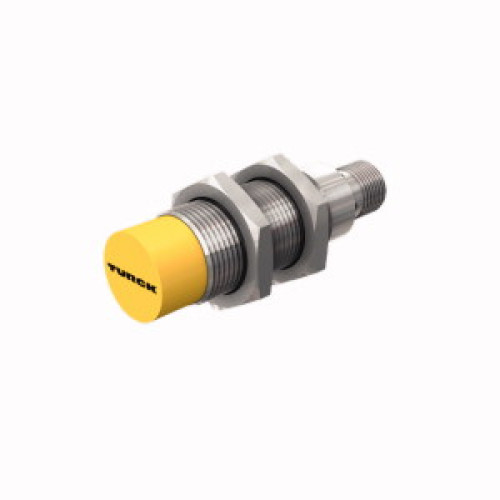

HF Read/Write Head, For Bus Line Topology with TBEN-*

Manufacturer's No: TN-M18-H1147/C53     Manufacturer: Turck Banner
HF Read/Write Head, For Bus Line Topology with TBEN-*

Availability On Request

£257.06
  • HF Read/Write Head for Bus Line Topology
  • Operating Voltage: 10-30 VDC
  • Non-flush, Threaded barrel, M18 x 1, Chrome-plated brass
  • Device without end termination
  • Compatible with line topologies TBEN-S-2RFID- or TBEN-L-4RFID-
  • Max. 32 nodes per line/connection
  • Maximum spur line length: 2 m
  • Maximum bus length: 50 m
  • Suitable for static and slow dynamic applications
  • Command processed by one read/write head by default

Read more

  • Continuous HF bus mode executes command simultaneously on all read/write heads
  • Recorded data stored in module's ring buffer
  • Automatic address assignment for read/write head


Product

Manufacturer Material ID -
TN-M18-H1147/C53
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
84719000000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
IP67
Depth -
72 Millimetre
Diameter -
18 Millimetre
Frequency -
13.56 Megahertz
Housing material -
Other
Max. transmission range -
45 Millimetre
Radio protocol -
ISO 15693
Type of electric connection -
Plug-in connection
Type of voltage (input voltage) -
DC
