7030424

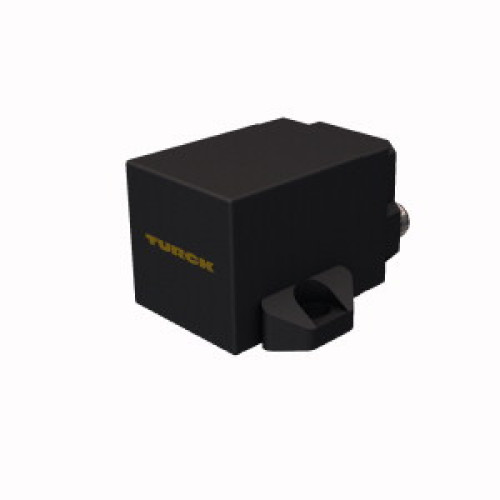

HF Read/Write Head

Manufacturer's No: TNSLR-Q42TWD-H1147     Manufacturer: Turck Banner
HF Read/Write Head

Availability On Request

£690.03
  • HF Read/Write Head
  • Operating voltage: 19.2 - 28.8 VDC
  • Non-flush, Rectangular design

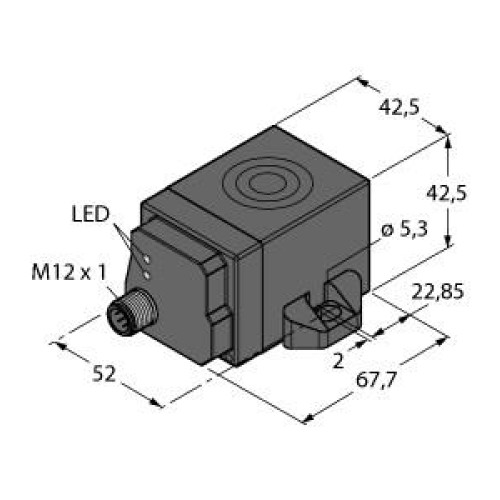

  • Height: 42.5 mm
  • Active face on top
  • Material: Plastic (PA12-GF30)
  • Powered and operated via connection to BL ident interface module
  • Connector: M12 x 1
  • Connection only possible via BL ident extension cable


Product

Manufacturer Material ID -
TNSLR-Q42TWD-H1147
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
84719000000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
Other
Depth -
67.7 Millimetre
Frequency -
13.56 Megahertz
Height -
42.5 Millimetre
Housing material -
Plastic
Max. transmission range -
215 Millimetre
Radio protocol -
ISO 15693
Type of voltage (input voltage) -
DC
Width -
42.5 Millimetre
Turck Banner

Availability On Request

£690.03
