1SBL281024R8110

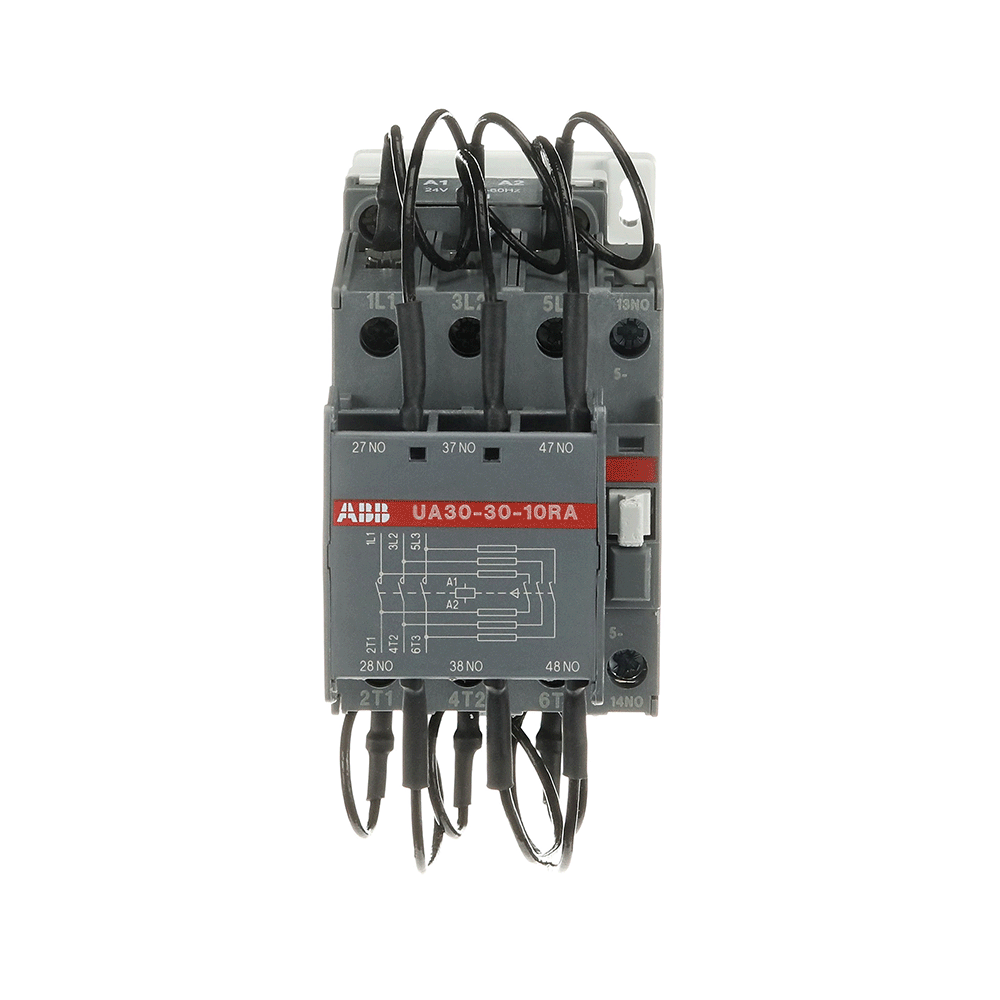

UA30-30-10RA 24V 50Hz / 24V 60Hz Contactor

Manufacturer's No: UA30-30-10RA     Manufacturer: ABB
UA30-30-10RA 24V 50Hz / 24V 60Hz Contactor

Availability Available to order

£212.83
  • UA30-30-10RA 24V 50Hz / 24V 60Hz 3-pole contactor for capacitor switching
  • Suitable for installations with peak current exceeding 100 times nominal rms current
  • Electrical durability: 250,000 operating cycles for Ue < 500 V, 100,000 operating cycles for 500 V ? Ue ? 690 V
  • Delivered with damping resistors for limiting current peak on capacitor bank energization
  • Front-mounted block for serial insertion of 3 damping resistors
  • Capacitors must be discharged (residual voltage at terminals ? 50 V) before re-energizing
  • Control circuit: AC operated with laminated magnet circuit
  • Accessories: wide range available
  • Block type design with 3 main poles and 1 built-in auxiliary contact


Product

Manufacturer Material ID -
UA30-30-10RA
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Depth -
141 Millimetre
Height -
130 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated blind power at 400 V, 50 Hz -
30 Kilo-blindpower
Rated blind power at 400 V, 60 Hz -
30 Kilo-blindpower
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
54 Millimetre
