1SBL351022R8511

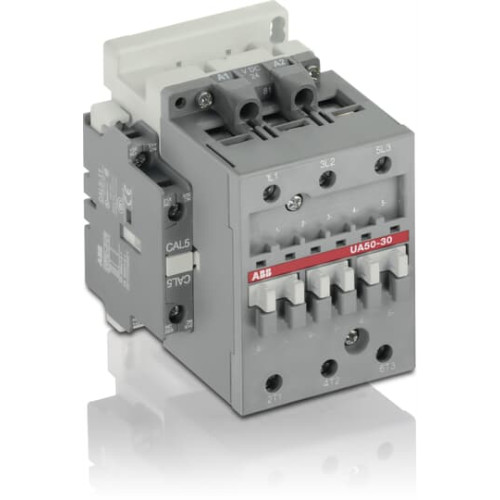

UA50-30-11 380-400V 50Hz / 400-415V 60Hz Contactor

Manufacturer's No: UA50-30-11     Manufacturer: ABB
UA50-30-11 380-400V 50Hz / 400-415V 60Hz Contactor

Availability Available to order

£347.35
  • UA50-30-11 3-pole contactor for capacitor switching
  • Operational voltage: 380-400V 50Hz / 400-415V 60Hz
  • Suitable for switching capacitor banks with inrush current peaks ? 100 times nominal rms current
  • Electrical durability: 100,000 operating cycles
  • Block type design with 3 main poles and 2 built-in auxiliary contacts
  • Control circuit: AC operated with laminated magnet circuit
  • Capacitors must be discharged (residual voltage at terminals ? 50V) before re-energizing
  • Maximum peak current values accepted by the contactor specified in a table
  • Wide range of accessories available


Product

Manufacturer Material ID -
UA50-30-11
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529
ABB

Availability Available to order

£347.35
